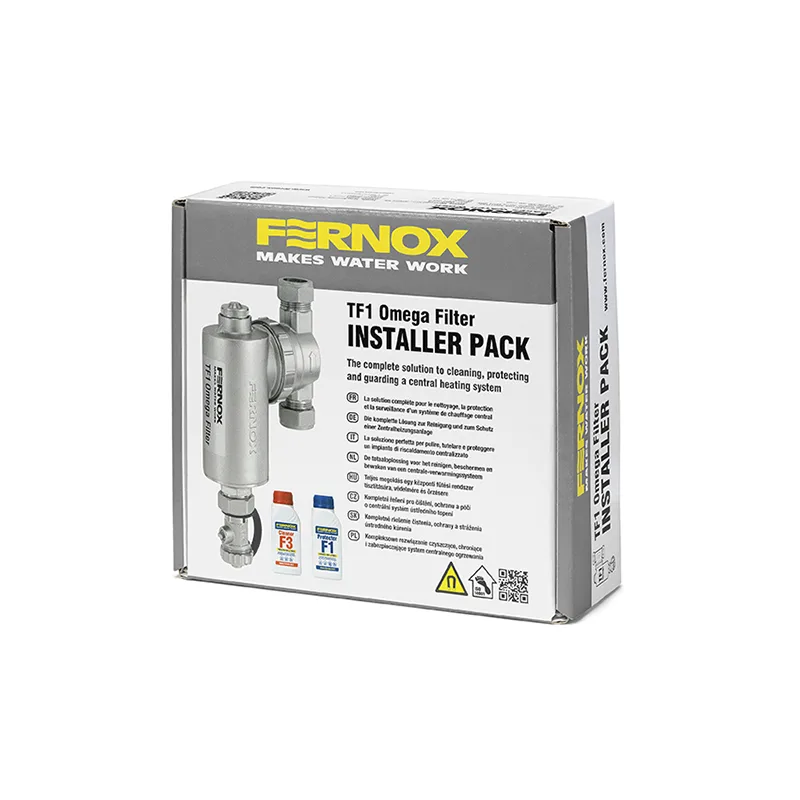

TF1 Omega Installer Pack 22mm Slip Socket

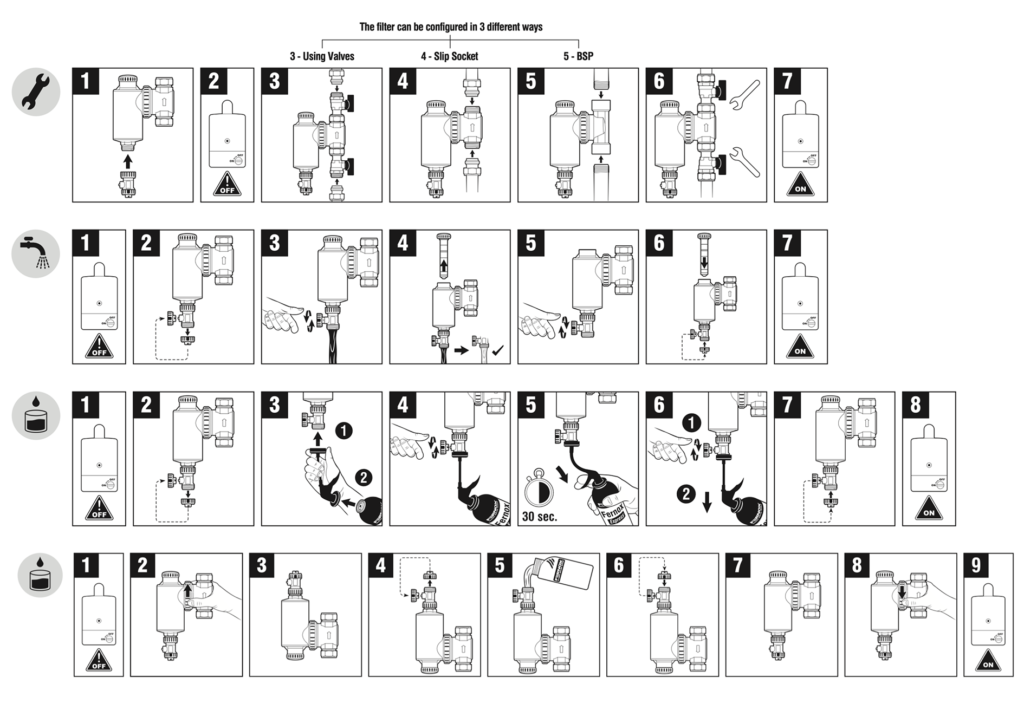

Designed to be installed on domestic heating systems on the relevant pipework size. The TF1 Omega Filter can be easily fitted onto either horizontal or vertical pipework in both flow directions. The TF1 Omega Filter is designed to protect the boiler from the damaging effects of circulating corrosion debris, which has collected in the system as a result of a chemical reaction when water comes into contact with mixed metals used within a heating and cooling system. The TF1 Omega Filter should be fitted on the return to the boiler and can be installed at up to 45⁰ from the vertical position.

Fernox Protector F1 gives long-term protection of domestic central heating systems against internal corrosion and limescale formation. It is suitable for all types of boiler, radiators and pipe work systems. Protector F1 is compatible with all metals and materials commonly used in central heating systems. It is suitable for use with all types of water, including softened water and deionised water. The recommended ‘in use’ concentration of Protector F1 265ml is 0.265%. One 265 ml bottle will treat an average domestic system (100 litres). For open vented systems add via the feed and expansion tank. For sealed systems add via a suitable dosing point (e.g. a towel rail or an in-line TF1 system filter). Alternatively, use a suitable dosing vessel to inject the product into the system. In single feed indirect cylinders, e.g.’Primatic’ or similar, potable water chemicals must be used. Fernox recommends untreated or sludged systems are thoroughly cleaned and flushed in accordance with BS 7593:2019 and Benchmark using any product from the Fernox Cleaner range, before treating with Fernox Protector F1, as existing debris can damage the installation and may reduce the lifespan of the boiler and system.

A single dose of Cleaner F3 treats 100 litres, up to 12 radiators, or 190 sqm of underfloor heating. Additional / repeat applications of Cleaner F3 may be necessary for larger systems, or if systems are heavily sludged. Alternatively, Power Cleaner F8 may be used for heavily sludged systems. First drain and refill the entire system with plain water. For optimum results the entire system, including drop feed radiators where fitted, should be completely drainable. Preferably, full bore gate valves with hose connectors should be provided temporarily for this purpose. Motorised and thermostatically controlled valves must be set so that no part of the system is closed off during cleansing, or rinsing. Discharges must be made to the foul drain and not the surface water drain. For open vented systems add Cleaner F3 via the header tank. For sealed systems add via a suitable dosing point, or use Fernox Cleaner F3 Express 400ml. Fernox Cleaner F3 can also be used in conjunction with a powerflushing unit. In this case, please refer to the unit manufacturer’s instructions. When pre-commission cleansing new systems, Fernox Cleaner F3 should be circulated for a minimum of one hour at normal operating temperature. For cleaning existing systems, sludge and debris should be dispersed also within one hour at normal operating temperatures. However, to remove hardened iron oxides and limescale, the cleaning time can be extended to up to one week under the normal heating cycle. If a radiator still has a cold spot after one hour, increase the flow through the radiator by closing the valves on the other radiators. An additional or repeat dose of Cleaner F3 may be necessary in some cases. Drain and flush thoroughly, at least twice, until the water runs clear. When using Cleaner F3 with a powerflushing machine, cleaning should be completed within an hour. Use dynamic flushing with plain water until the water is clear. Refill the system adding Fernox Protector F1 for long term protection against corrosion and limescale. In single feed indirect cylinders, e.g. ‘Primatic’ or similar, potable water chemicals must be used.
